Oscar Integration with Workshop Software

Oscar Integration allows you to access a wide range of products and brand sites directly through Workshop Software, simplifying the process of sourcing parts and managing your invoices. With Oscar, you can view and order from well-known brands such as Castrol, Kenwood, YHI Power, and many more—from log book service items to body parts.

Click the link below to view all the brands that integrate with Oscar:
Oscar Participating Brands Gallery

Getting Started with Oscar Integration

To integrate Oscar with your Workshop Software account, follow these steps:

Step 1: Set Up Your Oscar Account

You must have an existing Oscar account. If you don’t have one, contact Oscar directly.

Step 2: Request Integration

To enable integration with Workshop Software, email support@autoinfo.com.au and request that your Oscar account be configured for Workshop Software.

Step 3: Obtain Your Site Code and Terminal ID

  1. Log in to your Oscar account.

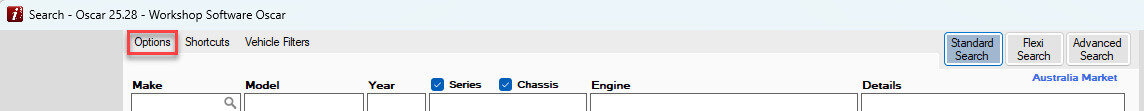

  2. Go to Options > My Login Details.

Workshop Software oscar integration with workshop software showing options > my login details” class=”wp-image-33124″></figure> <!-- /wp:image --></figure> <!-- /wp:gallery --> <!-- wp:list {

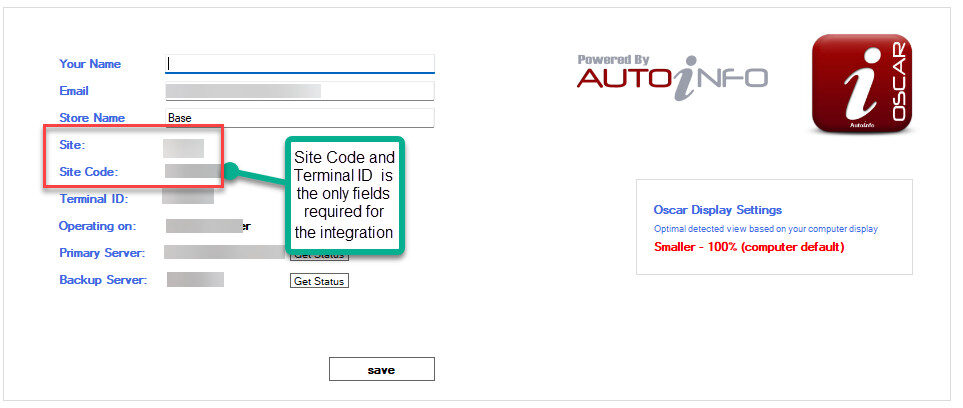

  1. Locate and copy your Site Code and Terminal ID.
Workshop Software screen showing locate and copy your site code and terminal id

Step 4: Enter Credentials into Workshop Software

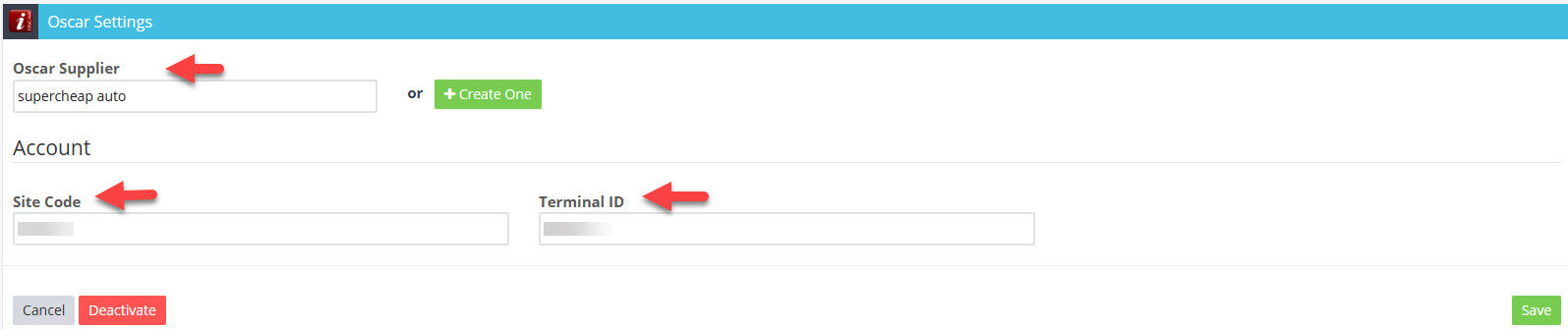

  1. In Workshop Software, go to Settings > Integrations > Automotive Integrations > Oscar.
  2. Enter your Site Code and Terminal ID.
  3. Click Save.

Workshop Software oscar integration with workshop software showing save

How to Use the Oscar Integration

Once set up, follow the steps below to create an order and bring parts into Workshop Software:

Step 1: Create an Invoice

  1. Start a new invoice in Workshop Software.
  2. Add the customer and vehicle details, then click Save.

Step 2: Start Oscar Integration

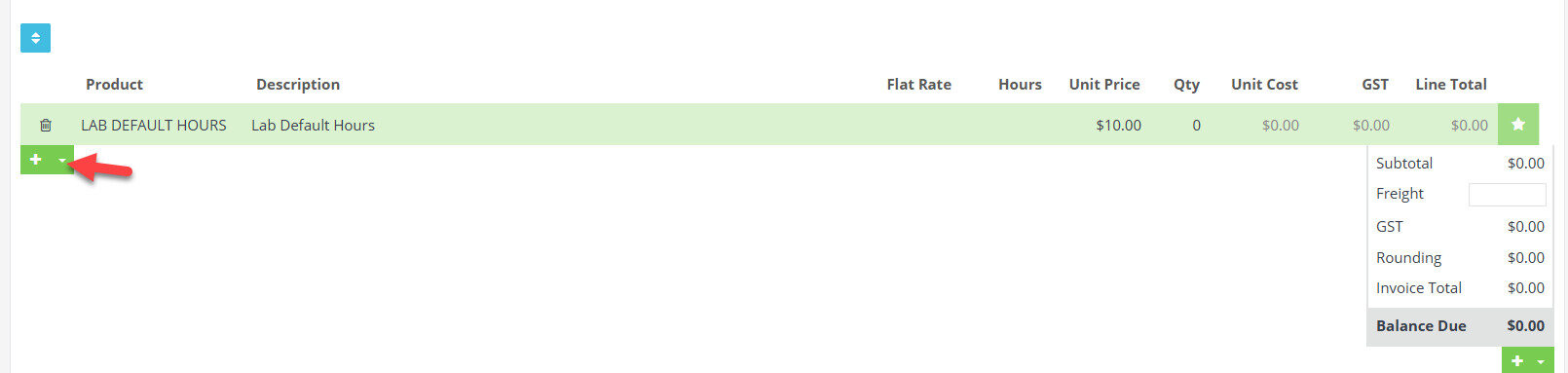

  1. Click the arrow under the product line.
Workshop Software screen showing start oscar integration click the arrow under the product line

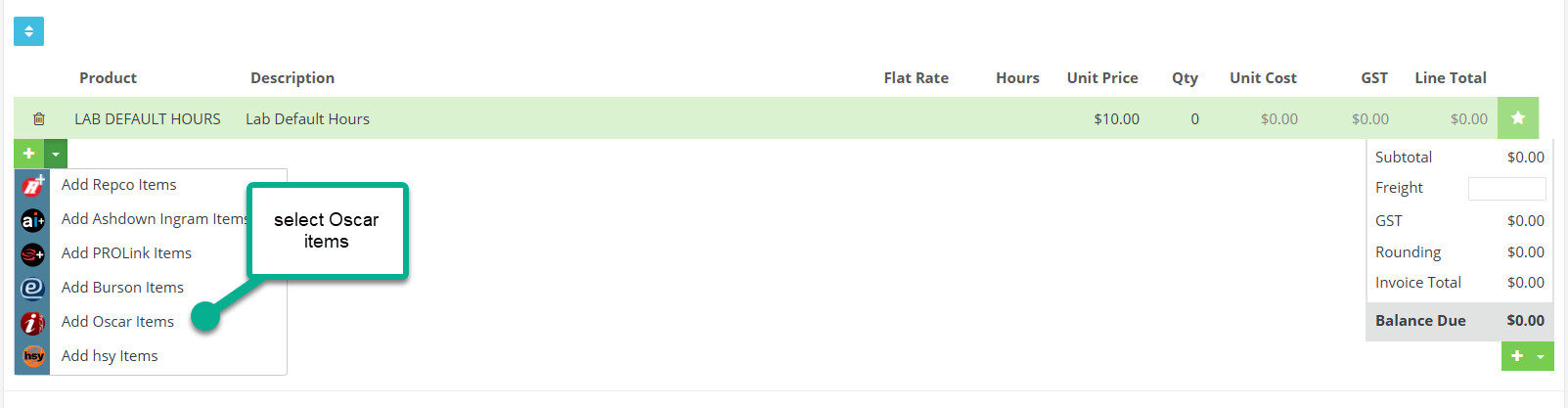

  1. Select Oscar from the drop-down.
Workshop Software oscar integration with workshop software showing oscar from the drop-down

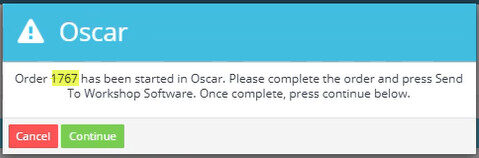

  1. A pop-up will appear:
    “Order XXXX has been started in Oscar. Please complete the order and press send to Workshop Software.”

Workshop Software screen showing please complete the order and press send to workshop software.”

Step 3: Complete the Order in Oscar

  1. Log in to Oscar.

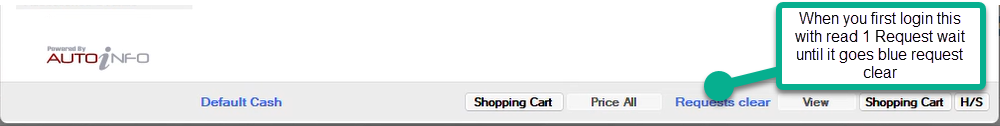

  2. At the bottom of the page, you’ll see 1 Request> wait until it turns blue. Request Clear

Workshop Software oscar integration with workshop software step 7 of 20

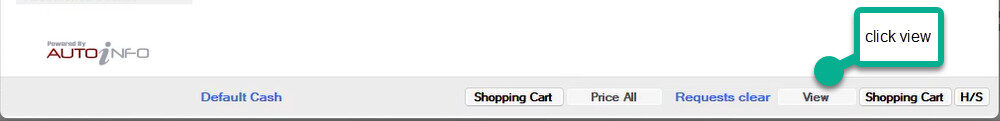

click View next to the Blue Request Clear.

Workshop Software oscar integration with workshop software showing view next to the blue request clear

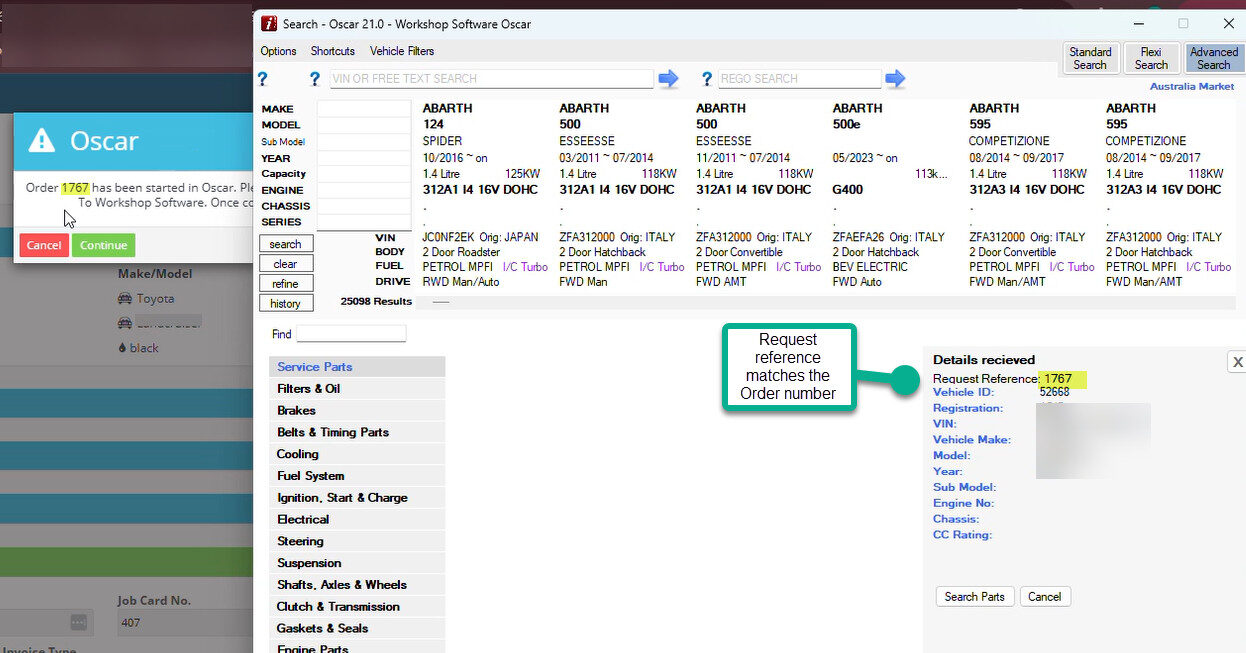

  1. The order and vehicle details (Registration, VIN, Make, Model, Year) will appear.

Workshop Software screen showing the order and vehicle details (registration, vin, make, model, year) will appear

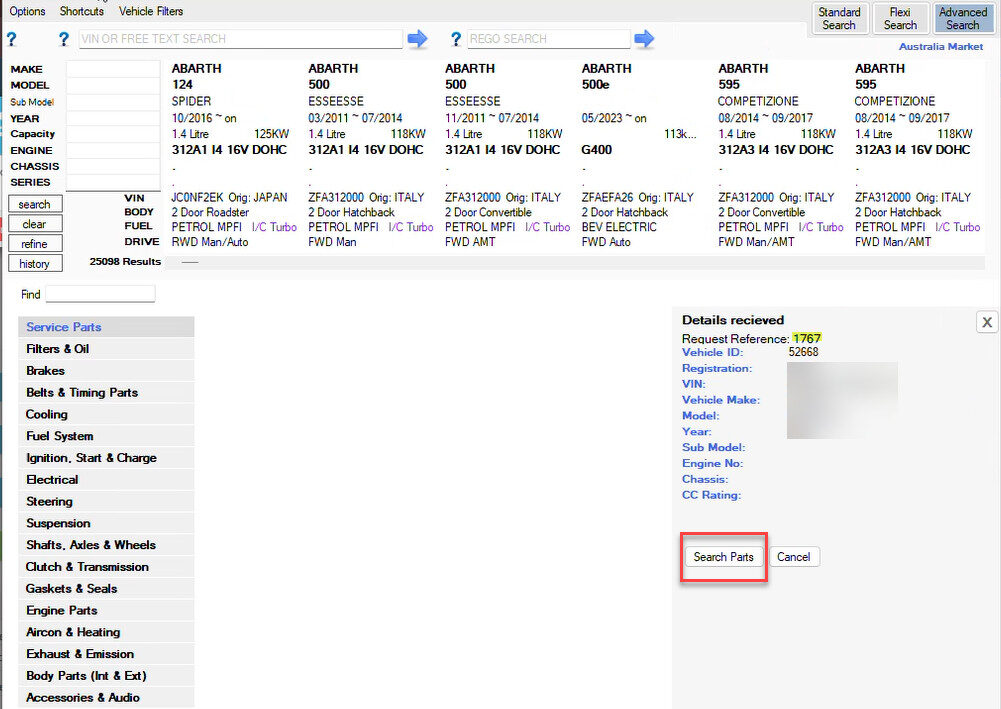

  1. Select Search Parts.

Workshop Software oscar integration with workshop software showing search parts

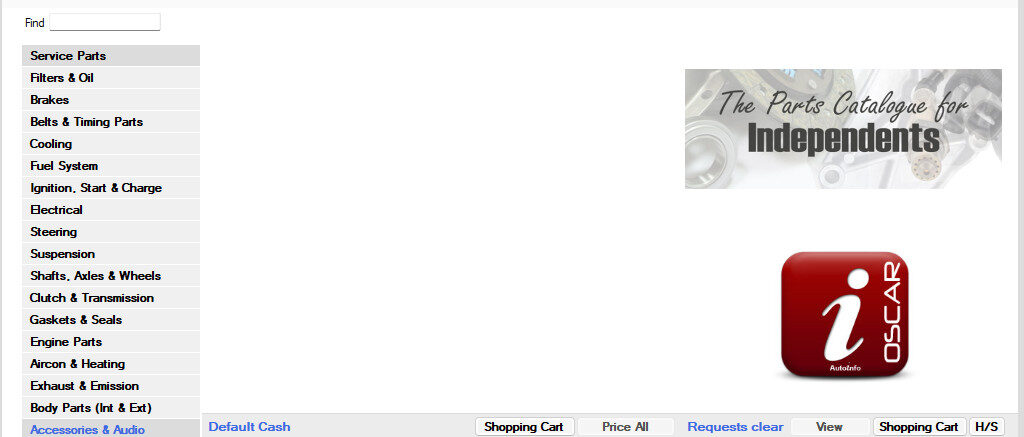

  1. Choose a category (e.g., Filters & Oils, Brakes, Fuel System).

Workshop Software oscar integration with workshop software showing category (e.g., filters & oils, brakes, fuel system)

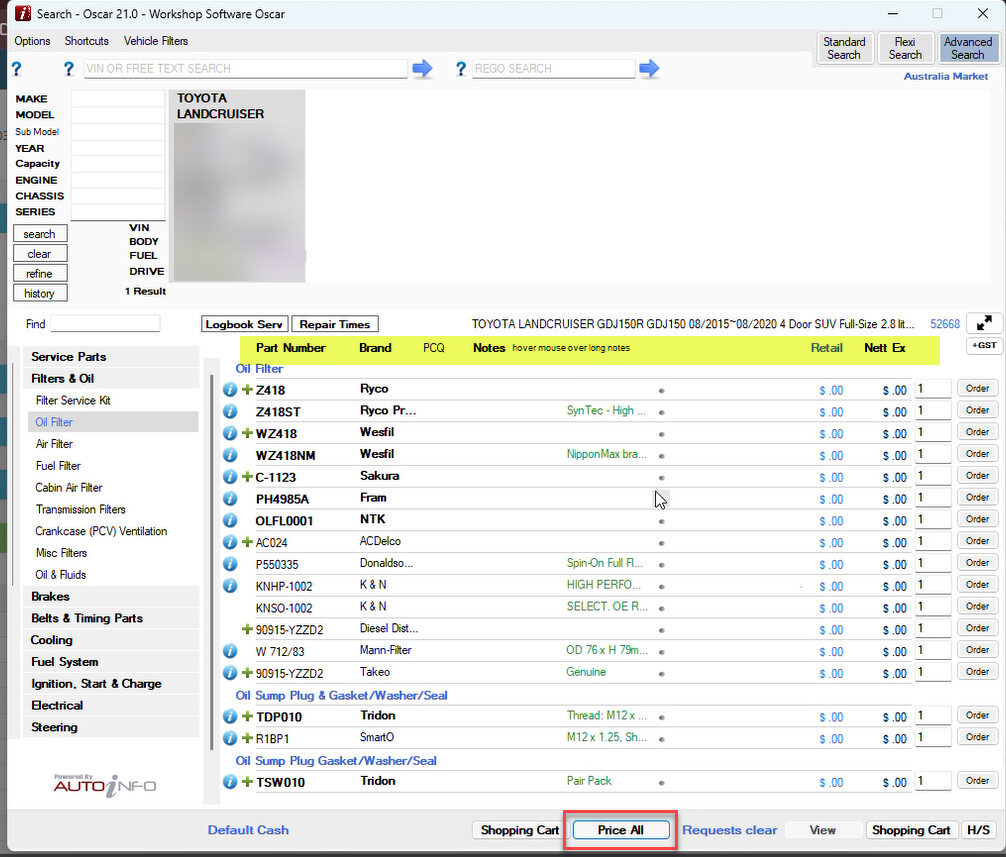

  1. Click Price All to view available products from different brands.

Workshop Software oscar integration with workshop software showing price all to view available products from different brands

⚠️ Note: If your pricing is not set up in the Oscar portal, pricing will not sync to Workshop Software.

Step 4: Place the Order

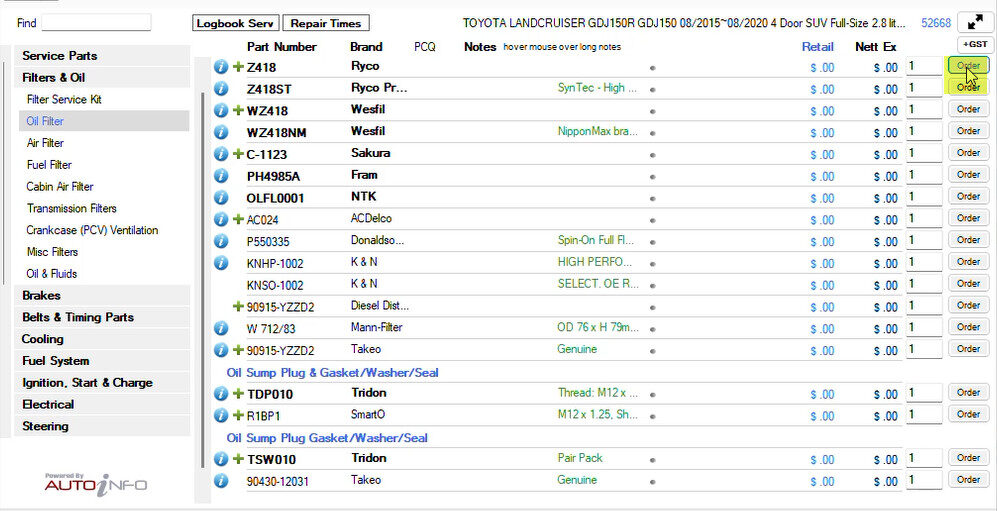

  1. Click Order next to the products you wish to purchase.

Workshop Software screen showing place the order click order next to the products you wish to purchase

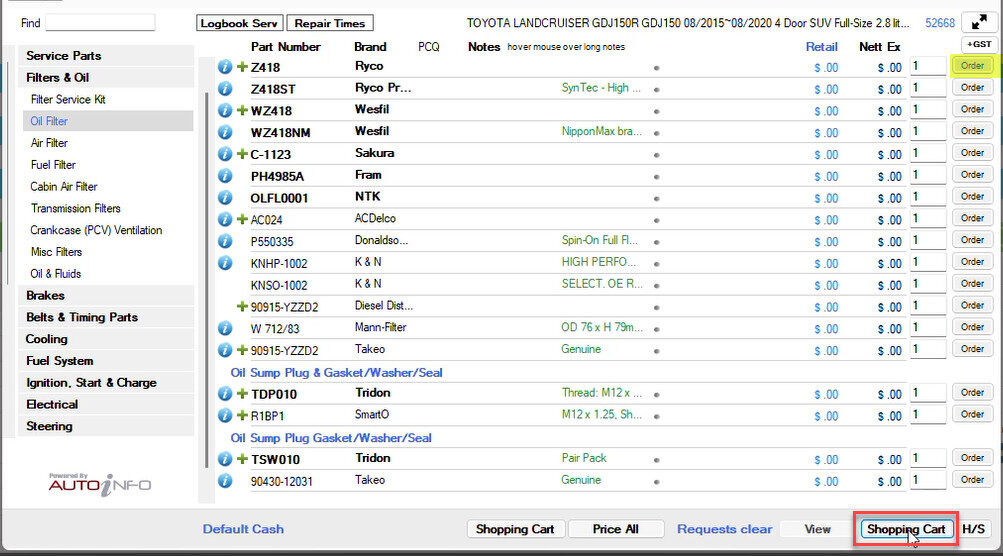

  1. Once all items are added, click the Shopping Cart (bottom-right).

Workshop Software screen showing once all items are added, click the shopping cart (bottom-right)

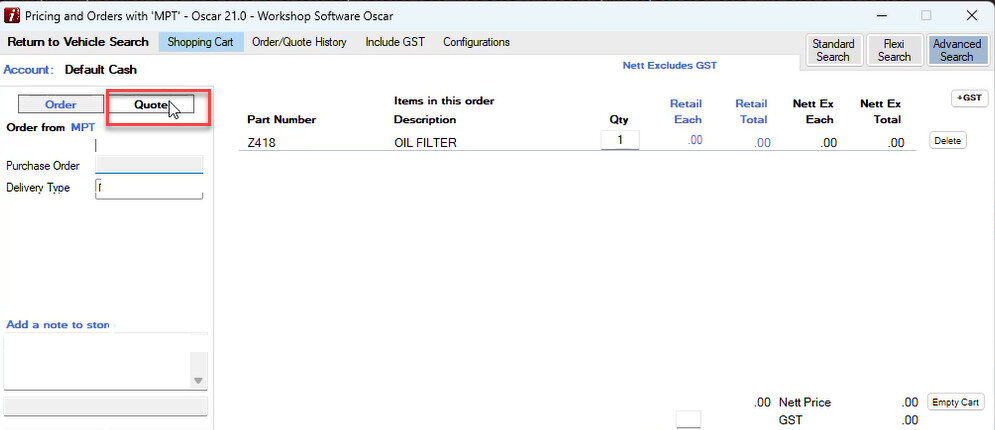

  1. Change the document type to Quote.

Workshop Software oscar integration with workshop software showing document type to quote

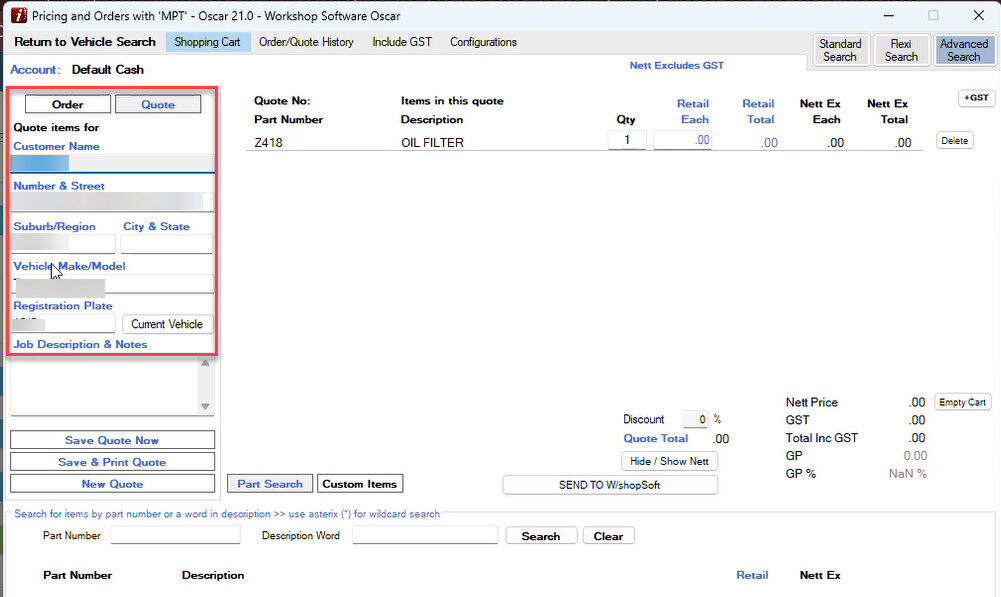

  1. Confirm the Customer Name, Address, Vehicle Make and Model.

Workshop Software oscar integration with workshop software showing customer name, address, vehicle make and model

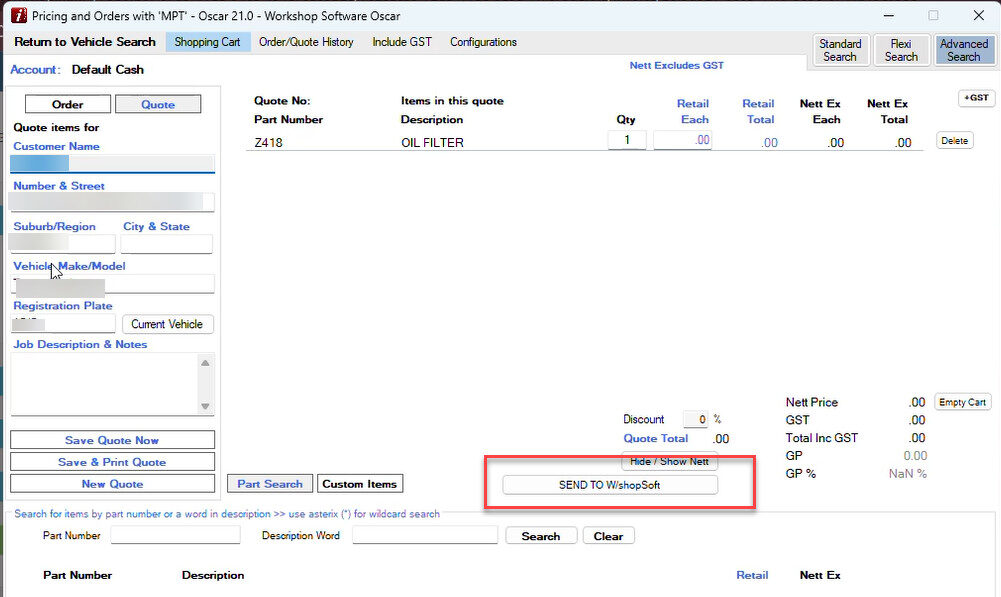

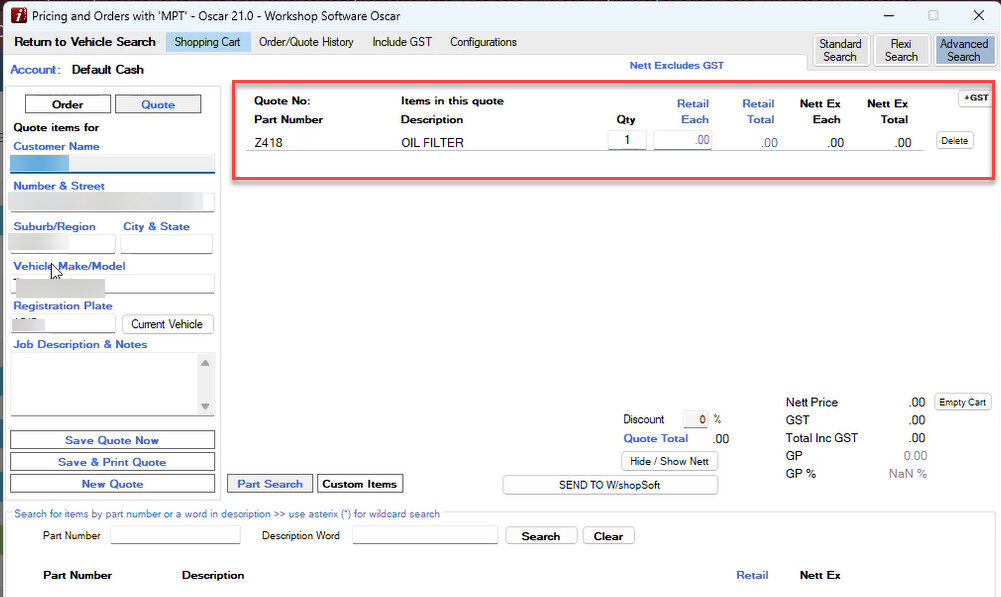

  1. Review the selected parts, then click Send to Workshop Software.

Workshop Software screen showing review the selected parts, then click send to workshop software
Workshop Software oscar integration with workshop software step 18 of 20

Step 5: Finalise in Workshop Software

  1. Close Oscar and return to Workshop Software.

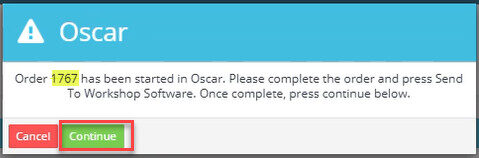

  2. Press Continue on the pop-up window.
Workshop Software oscar integration with workshop software showing continue on the pop-up window
  1. All selected products will sync directly into your invoice.
Workshop Software screen showing all selected products will sync directly into your invoice

The Oscar integration streamlines your workflow by allowing you to search, price, and order parts from multiple leading suppliers—then seamlessly import them into Workshop Software invoices. Be sure your Oscar account is fully set up with pricing details to ensure all data syncs correctly.

For setup support with Oscar or additional help, feel free to contact:
📧 support@autoinfo.com.au
📞 Or reach out to our team for assistance at support@workshopsoftware.com
